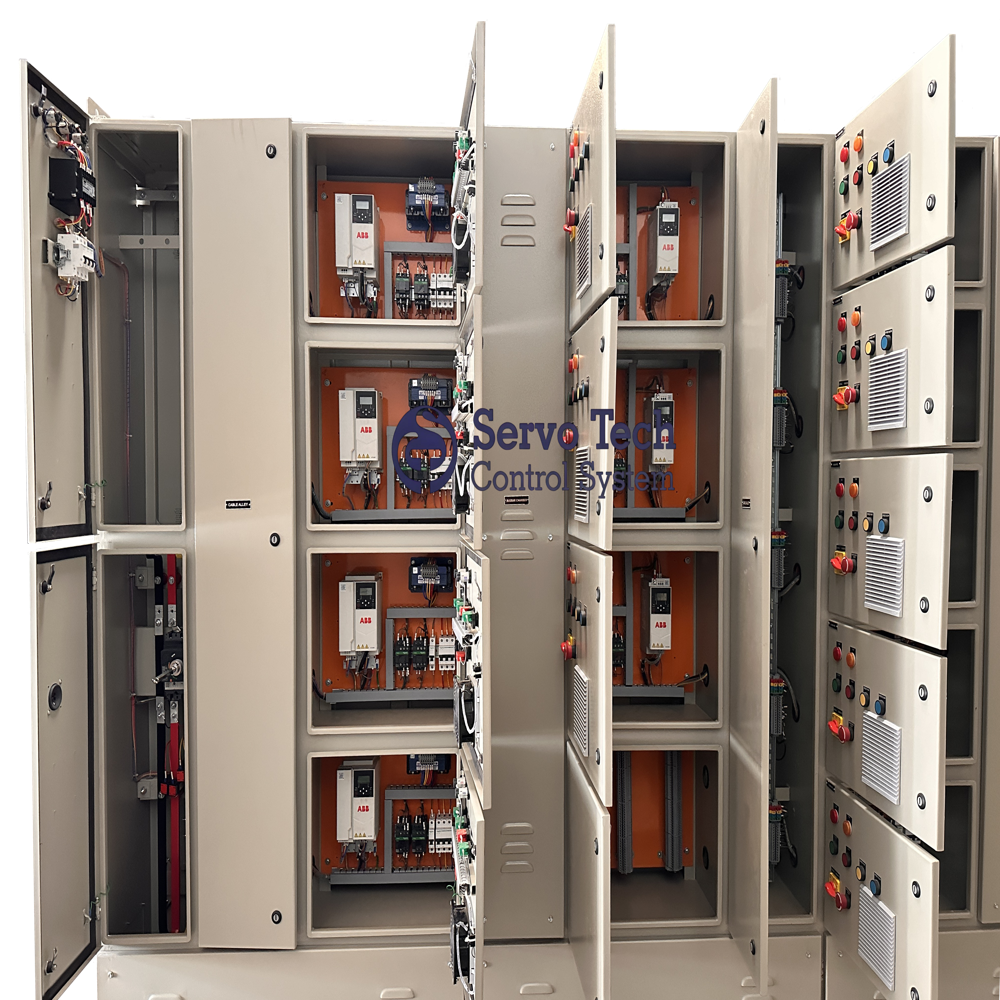

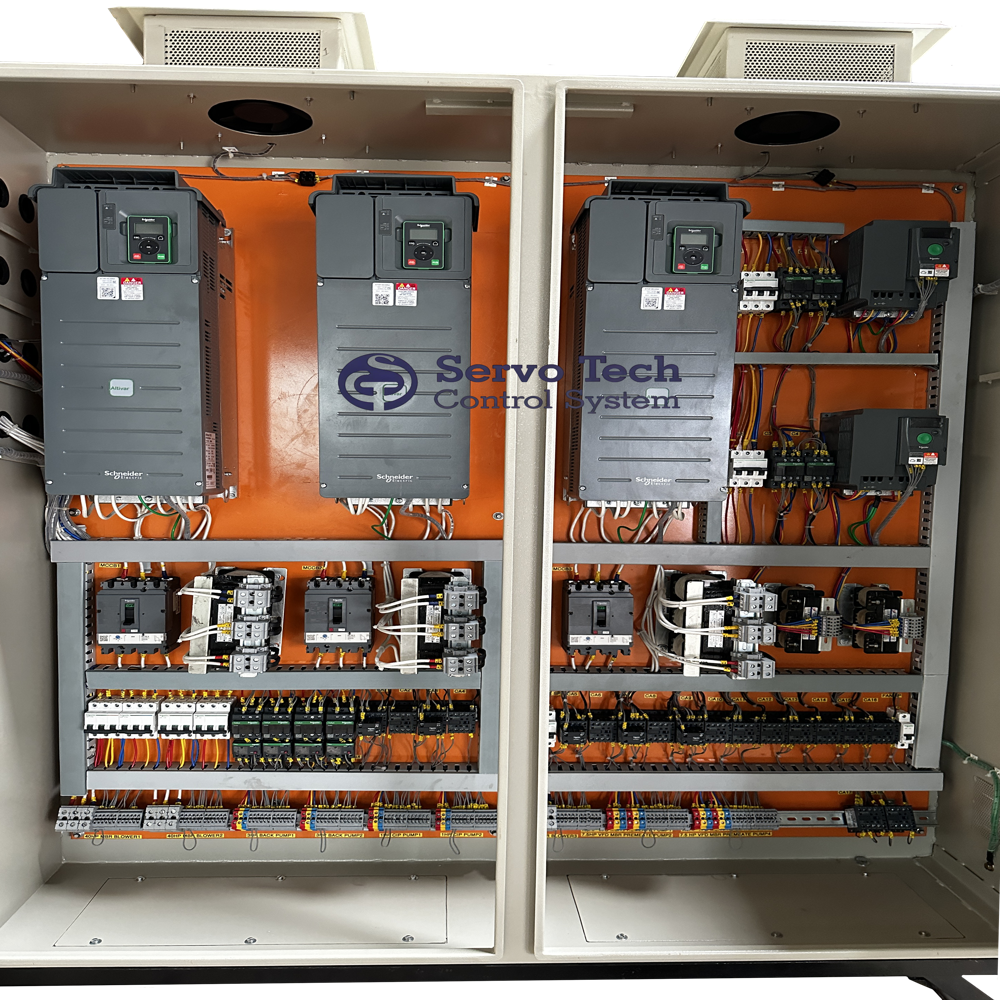

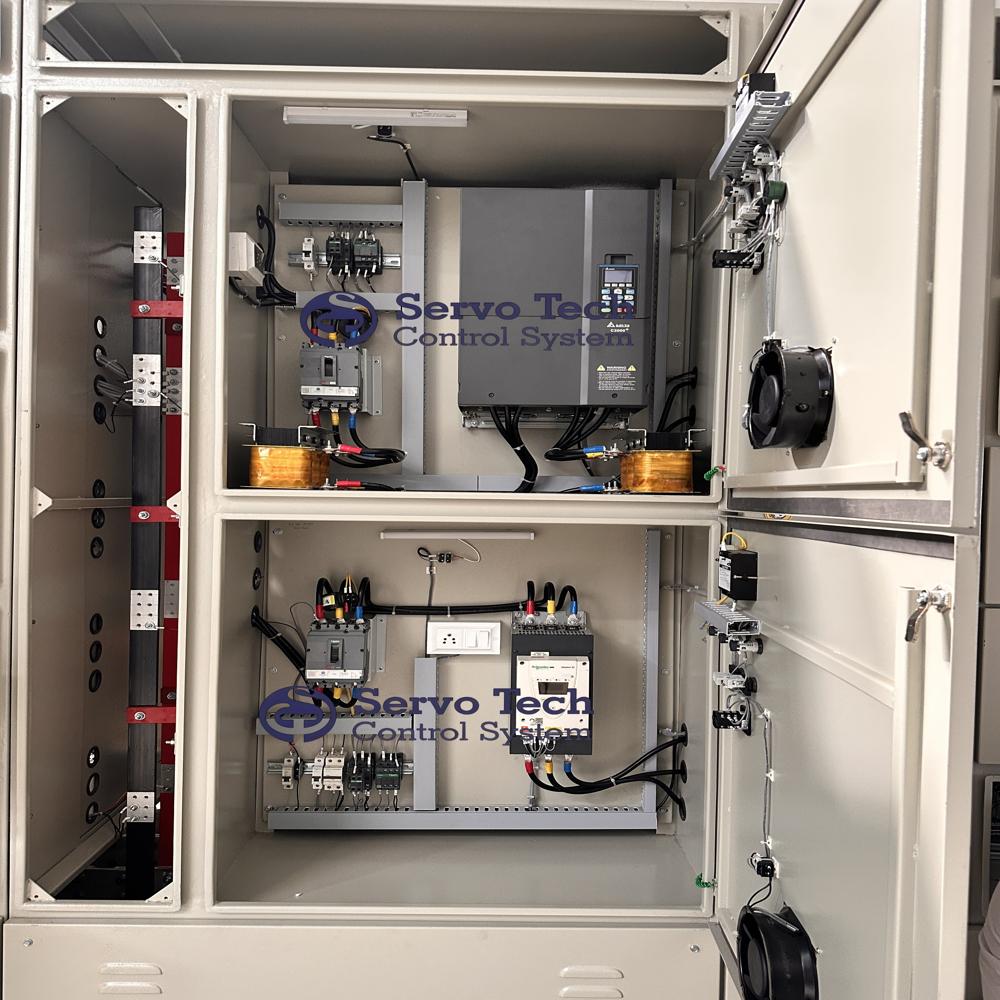

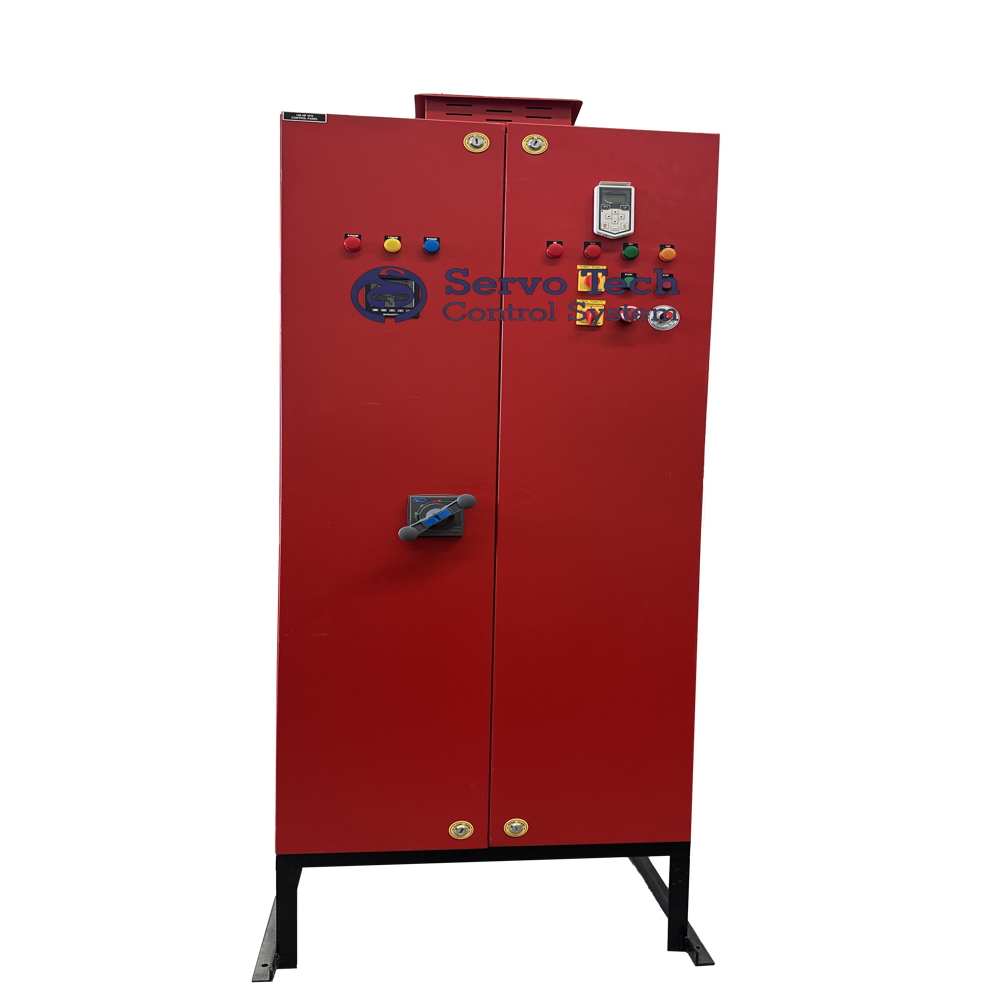

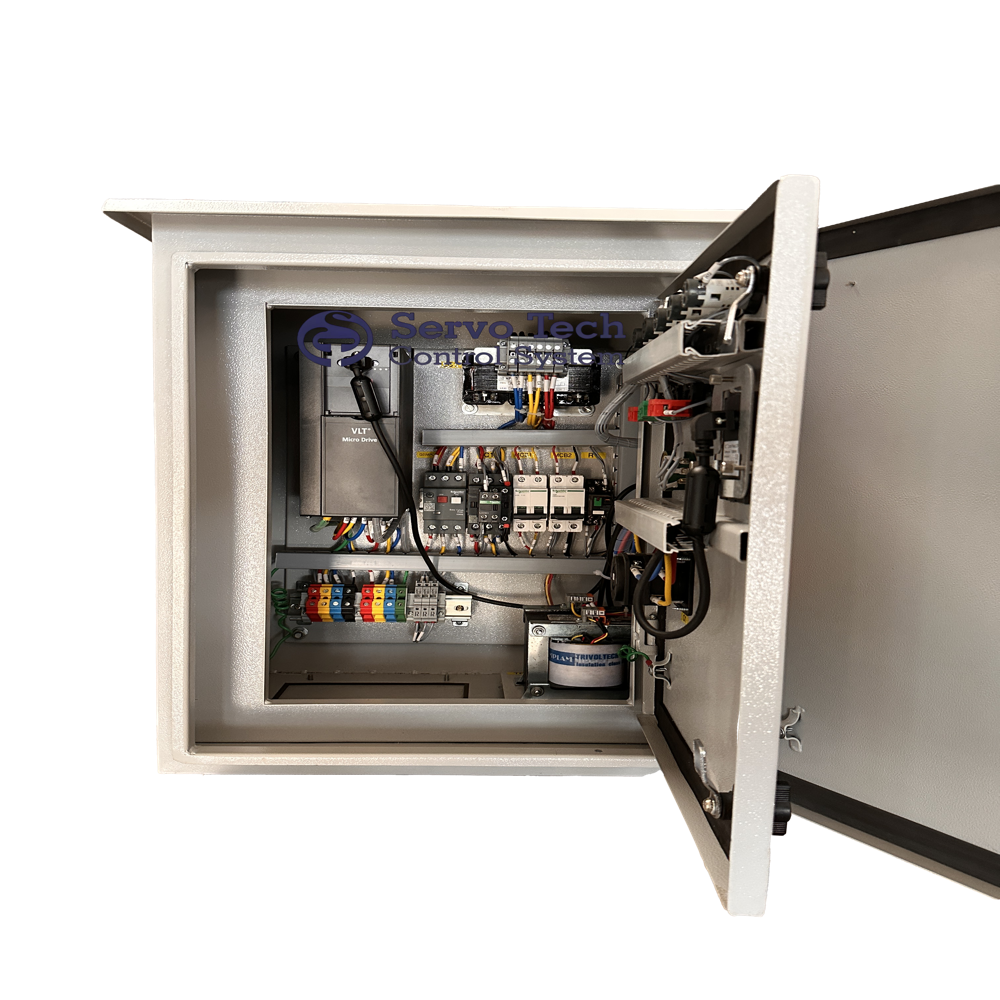

VFD CONTROL PANEL

Name: VFD CONTROL PANEL
Brand: SERVO TECH CONTROL SYSTEM
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VFD CONTROL PANEL Specification

Control Voltage
24V/110V/230V AC/DC

Auxiliary Supply
As per requirement

Indications
LED Indications for Run, Trip, Fault, Power On

Enclosure Type
Modular & Compartmentalized

Programmable Logic Controls
Available on Demand

Ambient Temperature
-10C to +50C

Door Type
Double Door with Lock & Gasket

Remote Monitoring Capability
Available

Cable Entry
Top and Bottom Entry Option

Earth Busbar
Provided

Mounting Type
Floor Mounted or Wall Mounted

Busbar Material
Electrolytic Grade Copper

VFD CONTROL PANEL Trade Information

Minimum Order Quantity
1 Piece

FOB Port
AHMEDABAD

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Delivery Time
7 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Maharashtra, Gujarat, Madhya Pradesh, Rajasthan

About VFD CONTROL PANEL

A VFD Variable Frequency Drive control panel is an essential component used to control the speed and torque of electric motors by varying the frequency and voltage of the power supplied to the motor This technology enhances energy efficiency and provides precise motor control for various applications Heres a detailed technical description

Components

1 VFD Unit

The main that converts incoming AC power to DC and then back to variable frequency AC power to control the motor

Typically uses IGBT Insulated Gate Bipolar Transistor technology for efficient power conversion

2 Control Circuitry

Includes microprocessors or digital signal processors DSPs that manage motor control algorithms user interfaces and communication protocols

3 Input and Output Terminals

Terminals for connecting the power supply motor and auxiliary often including protection like fuses or circuit breakers

4 User Interface

Digital displays and keypads or touchscreen interfaces for programming and monitoring drive parameters eg speed torque acceleration and deceleration

5 Cooling System

Fans or heat sinks to dissipate heat generated during operation ensuring reliable performance and longevity

6 Feedback

Encoders or tachometers for providing realtime feedback on motor speed and position allowing for closedloop control

7 Protection Features

Overvoltage undervoltage overload shortcircuit and overtemperature protection to ensure safe operation

8 Enclosure

A sturdy housing that protects internal components from dust moisture and mechanical damage often rated for specific environmental conditions eg IP rating

Operation

1 Startup Sequence

Upon receiving a start command the VFD gradually ramps up the motor speed from zero to the desired operating speed based on preset acceleration parameters

2 Speed Control

The VFD adjusts the output frequency and voltage to control the motor speed Users can set parameters such as maximum speed minimum speed and accelerationdeceleration rates

3 Torque Control

VFDs can provide constant torque or variable torque depending on the application allowing for precise control of motor performance

4 Feedback Loop

In closedloop systems feedback from encoders or sensors allows the VFD to adjust its output dynamically for optimal performance and stability

Applications

Commonly used in HVAC systems pumps fans conveyors mixers and various industrial processes requiring speed regulation and energy savings

Standards

Designed to meet relevant safety and performance standards eg IEC NEMA UL for industrial electrical equipment

Advantages

Energy savings through reduced power consumption at lower speeds

Improved process control and efficiency

Extended motor lifespan due to controlled starting and stopping

Reduced mechanical stress on connected equipment

This overview highlights the functionality and significance of VFD control panels in motor management systems If you need more specific details or have any particular aspects you want to discuss feel free to ask

Advanced Modular Design for Industrial Flexibility

This VFD Control Panel features a fully modular and compartmentalized structure, supporting various industrial applications. Its multi-way configuration and customizable dimensions ensure adaptability for unique site requirements, while double-door locking and gasketed seals provide added safety against dust and moisture. The use of premium electrolytic grade copper busbars guarantees superior conductivity and operational reliability.

Comprehensive Protection and Monitoring Capabilities

Equipped with overload and short-circuit protection, the panel includes MCCB, MCB, contactors, overload relays, and auxiliary relays. Real-time monitoring is enabled through LED indicators for run, trip, fault, and power status. Enhanced with programmable logic control (PLC) and remote monitoring capabilities via Ethernet, RS485, or Modbus, this panel ensures seamless control and diagnostics for industrial operations.

Efficient Operation in Demanding Conditions

Rated for ambient temperatures from -10C to +50C and IP54/IP55 protection levels, the panel excels in harsh industrial environments. Fan cooling, auto/manual operation modes, and energy-efficient design contribute to reliable and cost-effective performance. Top and bottom cable entry options and a provided earth busbar simplify installation and ensure safety.

FAQ's of VFD CONTROL PANEL:

Q: How is the VFD Control Panel installed, and what mounting options are available?

A: The VFD Control Panel can be installed either as a floor-mounted unit or mounted on a wall, providing flexibility for various industrial environments. It comes with top and bottom cable entry options and customizable dimensions to suit site-specific needs.

Q: What are the key benefits of using electrolytic grade copper busbars in this panel?

A: Electrolytic grade copper busbars ensure excellent electrical conductivity, low power loss, and enhanced reliability. This results in an energy-efficient system with reduced overheating risks, making it ideal for high-current industrial applications.

Q: When should programmable logic control (PLC) or remote monitoring be integrated into the panel?

A: Programmable logic controls and remote monitoring features should be selected when advanced automation, process sequencing, or off-site diagnostics are required. These capabilities significantly improve overall process efficiency and reduce downtime.

Q: What standards and protection levels does the VFD Control Panel adhere to?

A: The panel complies with IEC 61439 and IS 8623 international standards. Its construction achieves IP54 or IP55 protection levels, offering robust defense against dust, moisture, and ingress, suitable for demanding industrial environments.

Q: How does the panel alert operators to faults and operational status?

A: LED indicators mounted on the panel provide clear signals for run, trip, fault, and power-on status, enabling operators to quickly identify and respond to system changes or issues.

Q: Where can the VFD Control Panel be used, and what applications does it support?

A: Designed for industrial automation, the panel is ideal for motor control, pump control, and other process automation tasks in sectors such as manufacturing, water treatment, and utilities.

Q: What is the process for customizing the panel to specific requirements?

A: Customization is achieved through configurable panel dimensions, auxiliary supply options, control voltage choices, and component selection, including PLC-based controls. Upon consultation, requirements are reviewed and the panel is tailored to meet site and process demands.
